Nuclear Magnetic Resonance
Instruments

Keck Lab: Bruker 600MHz (TCI) NEO Solution NMR>>

• Helium-cooled TCI probe with high sensitivity (1H: S/N 8000:1)

• Excitation/detection of all four nuclei (1H, 2H, 13C,15N) in one experiment

• 1D, 2D and 3D NMR experiments

• 1D 19F NMR without 1H decoupling

• Fully automated NMR operation by ICONNMR

• Available for 24/7

Keck Lab: Bruker 500MHz (BBFO) AVIII Solution NMR>>

• Room-temperature broadband probe for all NMR nuclei from 31P to 15N

• 1D and 2D homonuclear and heteronuclear NMR experiments

• 1D 19F NMR with and without 1H decoupling

• Fully automated NMR operation by ICONNMR

• Available for 24/7

Keck Lab: Bruker 200MHz AVIII Solid State NMR>>

• 4mm MAS probe

• About 85 mg solid sample is needed (see FAQs about solid-state NMR sample requirements)

• Experiments at room temperature

• Extensive manual work is required (sample insert/eject, tuning/matching, and cable switch)

BRC Lab: Bruker 600MHz (P-BBO) NEO Solution NMR>>

• Nitrogen-cooled broadband probe for NMR nuclei in the range 31P to 15N except for the frequency range between 199Hg and 153Eu and 17O

• 1D and 2D homonuclear and heteronuclear experiments

• 1D 19F NMR without 1H decoupling

• Fully automated NMR operation by ICONNMR

• Available for 24/7

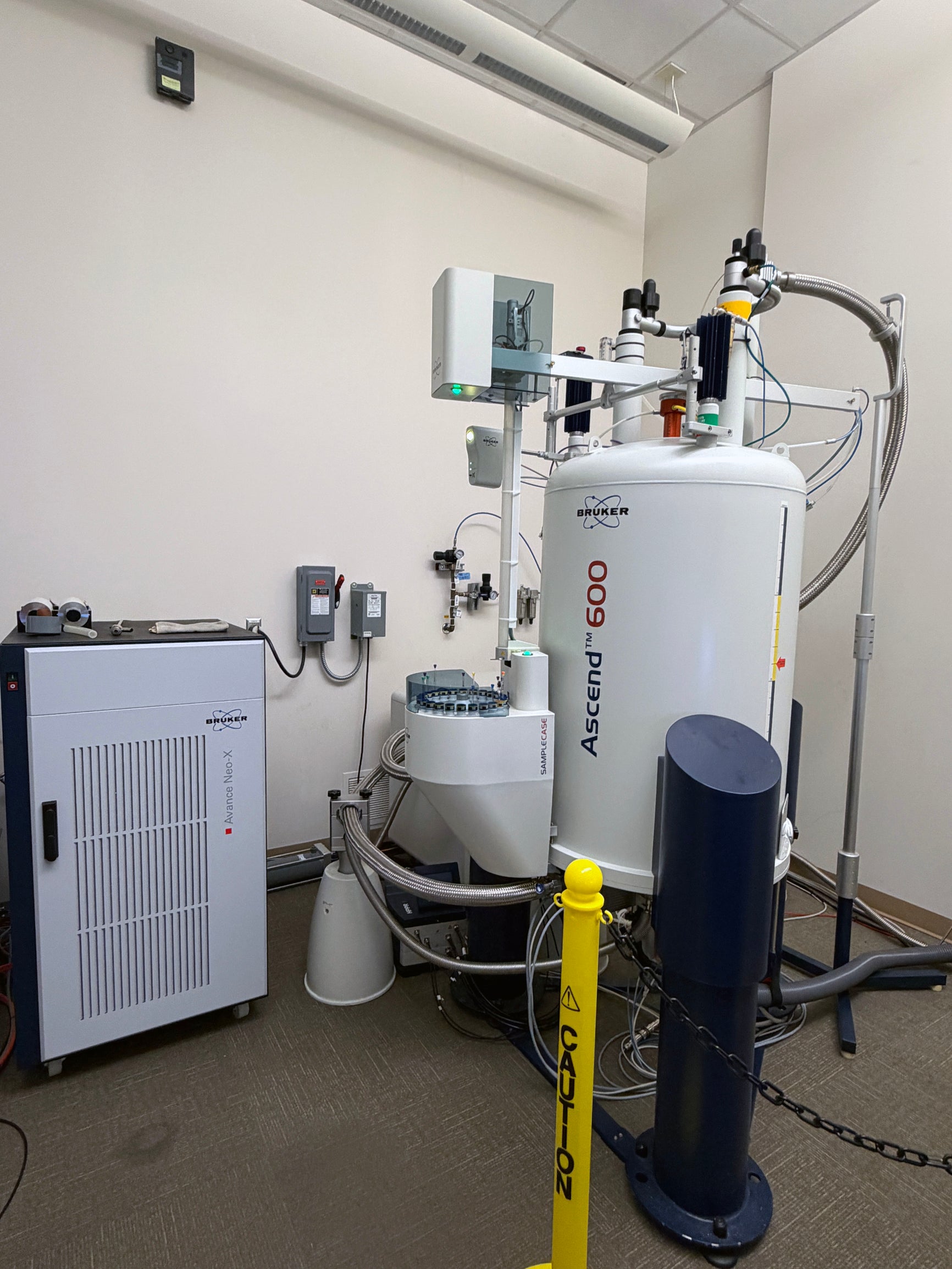

BRC Lab: Bruker 600MHz (DCH)NEO-X Solution NMR>>

• Helium-cooled DCH probe optimized for highest 13C sensitivity, as well as very good 1H performance

• 1D and 2D 13C observation experiments and also inverse experiments

• Fully automated NMR operation by ICONNMR

• Available for 24/7

DBH Lab: Bruker 400MHz (DCH) NEO Solution NMR>>

• Helium-cooled DCH probe optimized for highest 13C sensitivity (S/N 1598:1), as well as very good 1H performance (S/N 3098:1)

• 1D and 2D 13C observation experiments, and also inverse experiments

• Fully automated NMR operation by ICONNMR

• Available for 24/7
